MACK®TECHNOLOGY
High-precision technology
for fast and reliable
motion control.
Mack®Technology is the expression of 30 years of Axor®Ind. know-how and experience on the market: a reliable partner for every motion control need.
Mack®Technology implements all classic reference signals, including +/-10V analog, pulse/direction,digital speed and torque, positioning pro les and eldbuses such as EtherCat, CANopen, Modbus-RTU.
The Mack® line has two very distinct ranges, de ned by AC or DC power.
Mack® AC products can be connected directly to all major mains power supplies. Mack® AC servo drives reach 8A rated current and are designed for brushless servo motors.
Mack®Technology implements all classic reference signals, including +/-10V analog, pulse/direction,digital speed and torque, positioning pro les and eldbuses such as EtherCat, CANopen, Modbus-RTU.
The Mack® line has two very distinct ranges, de ned by AC or DC power.
Mack® AC products can be connected directly to all major mains power supplies. Mack® AC servo drives reach 8A rated current and are designed for brushless servo motors.
Mack® servo motors range from 0.16Nm to 11Nm and feature the Mack® single hybrid cable and single-turn or multi-turn absolute serial encoder.
The Mack® Nano and Uninano DC servodrives can be powered 12V-140Vdc and up to 50A nominal, they are such small servodrives (max 45x80mm) that they have revolutionized the concept of servo system architecture, ideal in narrow but dense architectures such as automatic machinery medical and format change sectors, labeling machines, AGVs, self-driving and self-propelled vehicles.
Compact, powerful, integrated: performing in both motion and automotive, both in new applications and in revisions.
Availability in a few days in the standard versions.
Customizable on request.
The Mack® Nano and Uninano DC servodrives can be powered 12V-140Vdc and up to 50A nominal, they are such small servodrives (max 45x80mm) that they have revolutionized the concept of servo system architecture, ideal in narrow but dense architectures such as automatic machinery medical and format change sectors, labeling machines, AGVs, self-driving and self-propelled vehicles.
Compact, powerful, integrated: performing in both motion and automotive, both in new applications and in revisions.
Availability in a few days in the standard versions.
Customizable on request.

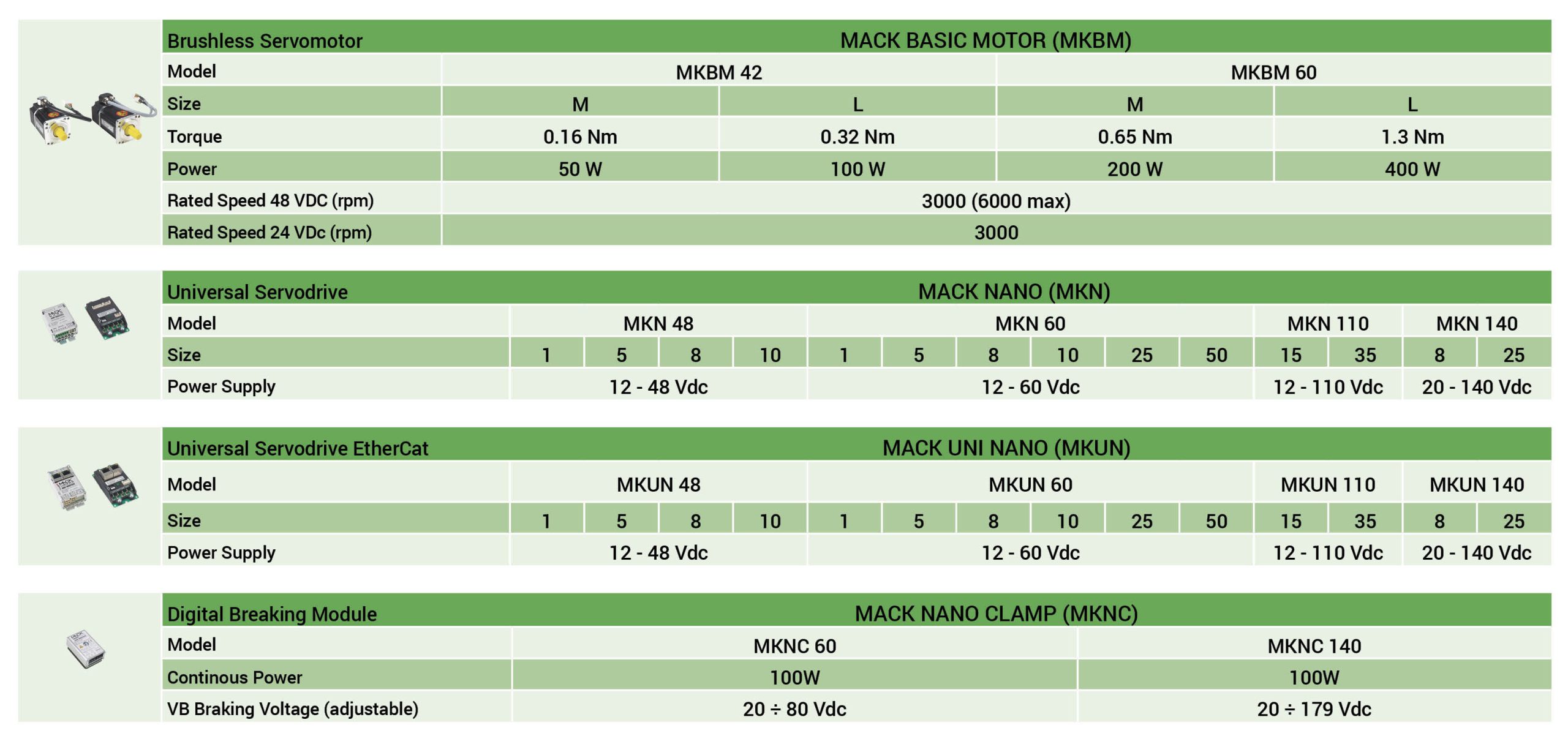

Motors and Drives with DC Power Supply

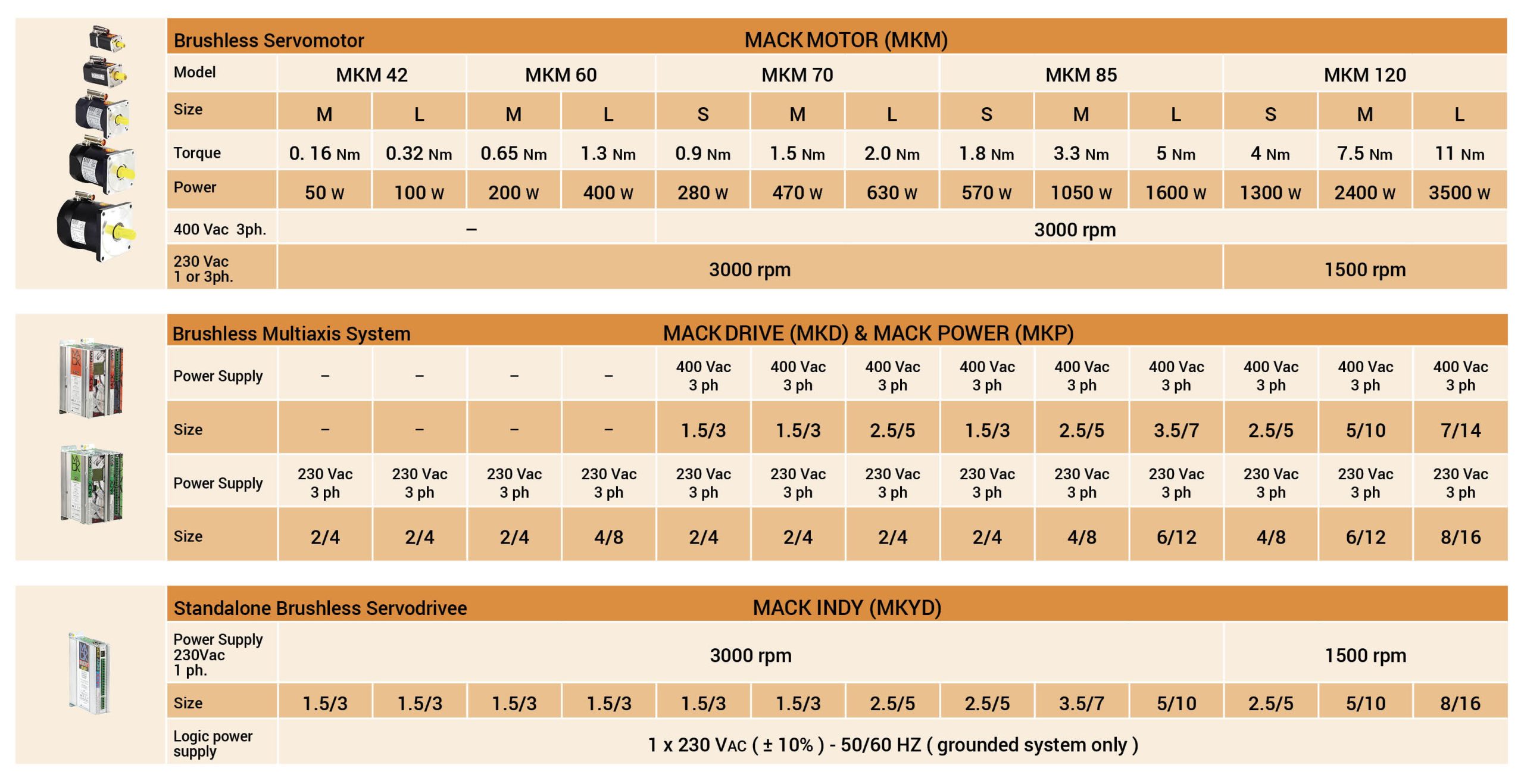

Motors and Drives with AC Power Supply
MACK®TRON 2
Mack®Tron2 is the upgrade of the previous servomotor with integrated drive Mack®Tron: a single device includes both the motor and its control unit, offering all the technology of our DC and brushless ranges contained in small dimensions in a single product.
The power supply is 24/48Vdc, it is available with a 42mm, 60mm and 80mm flange.
The M1 torque is 0.18Nm, 0.6Nm and 1.2Nm, the peak torque is 0.5Nm, 2.16Nm and 3.5Nm.
Control modes: CANopen, EtherCAT, Modbus-RTU, RS 485
with most major control manufacturers.
Configurations are available where power supplies, controls and safety devices are included in a single cable: a compact and easy to install solution, ideal in narrow but dense architectures such as automatic machines in the medical and format change sectors, labelers, packaging, 3D Printers, AGVs, self-driving and self-propelled vehicles .
The power supply is 24/48Vdc, it is available with a 42mm, 60mm and 80mm flange.
The M1 torque is 0.18Nm, 0.6Nm and 1.2Nm, the peak torque is 0.5Nm, 2.16Nm and 3.5Nm.
Control modes: CANopen, EtherCAT, Modbus-RTU, RS 485
with most major control manufacturers.
Configurations are available where power supplies, controls and safety devices are included in a single cable: a compact and easy to install solution, ideal in narrow but dense architectures such as automatic machines in the medical and format change sectors, labelers, packaging, 3D Printers, AGVs, self-driving and self-propelled vehicles .
Characterized by fast and simple wiring as well as high performance in small dimensions, Mack®Tron2 is the ideal solution for applications with decentralized architectures, with a notable reduction in space in the electrical panel or even elimination of the panel itself.
It boasts particular attention to the drive/servomotor combination, paying great attention to the optimization of space and heat dissipation.
The result is high speeds and high starting points, leaving reliability intact.
It becomes the ideal solution for automatic rotating carousel systems: power supply, control and safety devices can be in a single cable, with great savings in the use of sliding contacts.
Compact, powerful, integrated: performing in both motion and automotive, both in new applications and in revisions.
Unique, complete and reliable solution, designed and created together with users.
Standard availability of a few days in the standard versions.
Customizable on request.
It boasts particular attention to the drive/servomotor combination, paying great attention to the optimization of space and heat dissipation.
The result is high speeds and high starting points, leaving reliability intact.
It becomes the ideal solution for automatic rotating carousel systems: power supply, control and safety devices can be in a single cable, with great savings in the use of sliding contacts.
Compact, powerful, integrated: performing in both motion and automotive, both in new applications and in revisions.
Unique, complete and reliable solution, designed and created together with users.
Standard availability of a few days in the standard versions.
Customizable on request.
MACK TRON2
B42
48
Vdc
Vdc
0.18-0.5 pk
Nm
Nm
| Length 101 mm |
| Shaft 8mm diameter x 25mm long |
| M1 torque at 100Rpm: 0.18Nm |
| MKT peak torque: 0.5Nm |
| M15 power connector |
Axor Ind. cable in combination with M15 connector. Current up to 15A.
MACK TRON2
B60
48
Vdc
Vdc
0.6-2.16 pk
Nm
Nm
| Length 108 mm (141mm with the brake) |
| Shaft 14mm diameter x 30mm long |
| M1 torque at 100Rpm: 0.6Nm |
| MKT peak torque: 2.16Nm |
| M15 power connector |
Axor Ind. cable in combination with M15 connector. Current up to 15A.
MACK TRON2
B80
48
Vdc
Vdc
1.2-3.5 pk
Nm
Nm
| Length 139 mm (172mm with the brake) |
| Shaft 19mm diameter x 40mm long |
| M1 torque at 100Rpm: 1.2Nm |
| MKT peak torque: 3.5Nm |
| M23 power connector |
Axor Ind. cable in combination with M23 connector. Current up to 30A.
Integrated Brushless Servomotor Line
