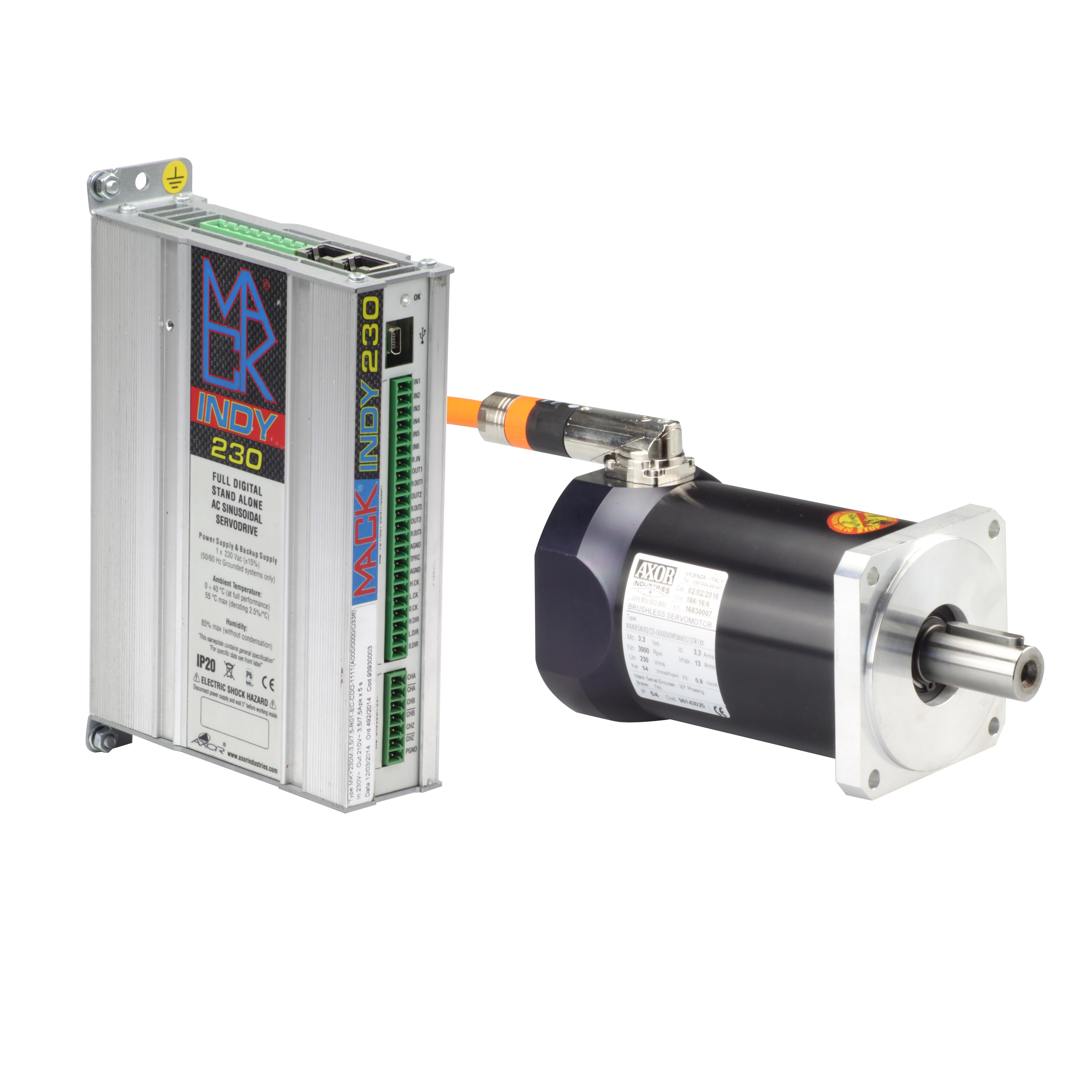

Brushless drives powered directly from a 230Vac single phase mains, for motors up to 11Nm. A truly flexible standalone drive for all servo requirements. It is compact and reliable, ideal for one or more axis machinery and articulated workstations or lines.
1x230
VAC
VAC
8
ARMS
ARMS
2400
W
W
COMMAND MODES
- Step Direction Command
- ±10V analog speed ( 12 bit )
- 0/10V analog torque ( 12 bit )
- Analog to position
- Digital position profiles
- CW / CCW
- Master/slave gearing
- Modbus-RTU
- CanBUS
- EtherCAT
MODELS
ALTERNATIVE PRODUCTS
FEATURES
- Very compact servodrive for brushless motors
- 230V 1ph Power supply direct from the mains
- EMC line filter, in-rush and braking circuits
- Suitable for MACK Motors up to 11 Nm (single hybrid cable)
- Suitable for other motors (2 cables)
- USB for drive setup, monitoring and diagnosis
- Serial Encoder compatible with Mack single hybrid motor cable
- SpeederOne PC software interface
- Emulated encoder
- 6 digital IN, 2 digital OUT
- STO Safe Torque Off
