Mack Tron2 B60

Minispeed (MS) Eurocard | Miniclamp (SHR)
29 May 2018

Brushless servo-motor with integrated drive

MackTron2 is the upgrade of the previous version of servo-motor with integrated drive Mack Tron. Power supply 48Vdc, rated torque M1 0.6 Nm – peak torque 2.16 Nm. It’s distinguished by the simple and fast cabling, as well as high performances in small dimensions. MackTron2 is the ideal solution for applications with de-centralized architecture, significantly reducing the footprint inside the electric panel or even eliminating the panel itself. Ultra compact dimensions for installation in limited space, without affecting the machine design.

48
VDC
0.6-2.16
Nm

OPERATIVE MODE

  • CANopen
  • EtherCAT
  • Modbus-RTU-RS485
  • Analogic throttle for speed and torque control

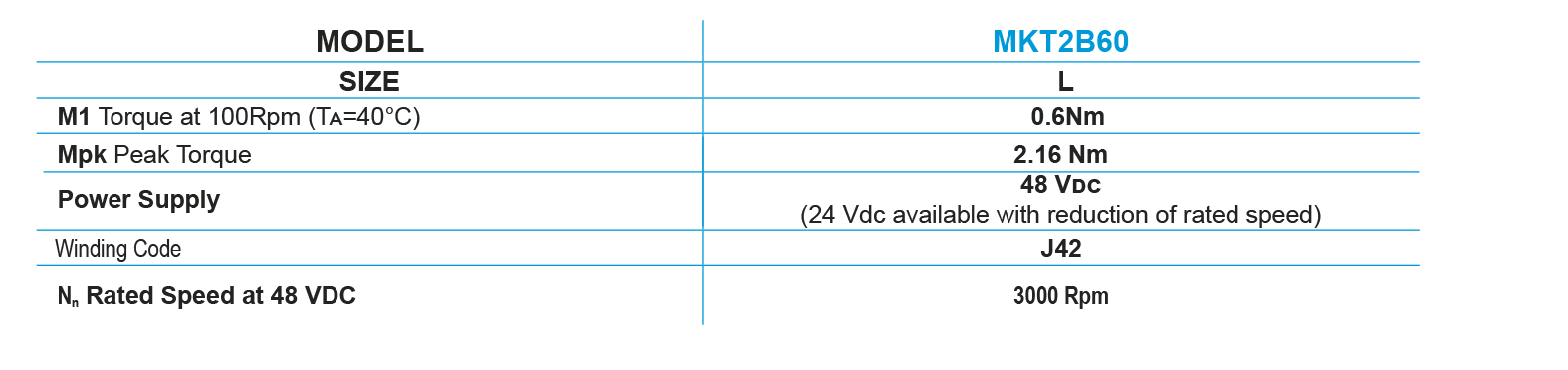

MODELS

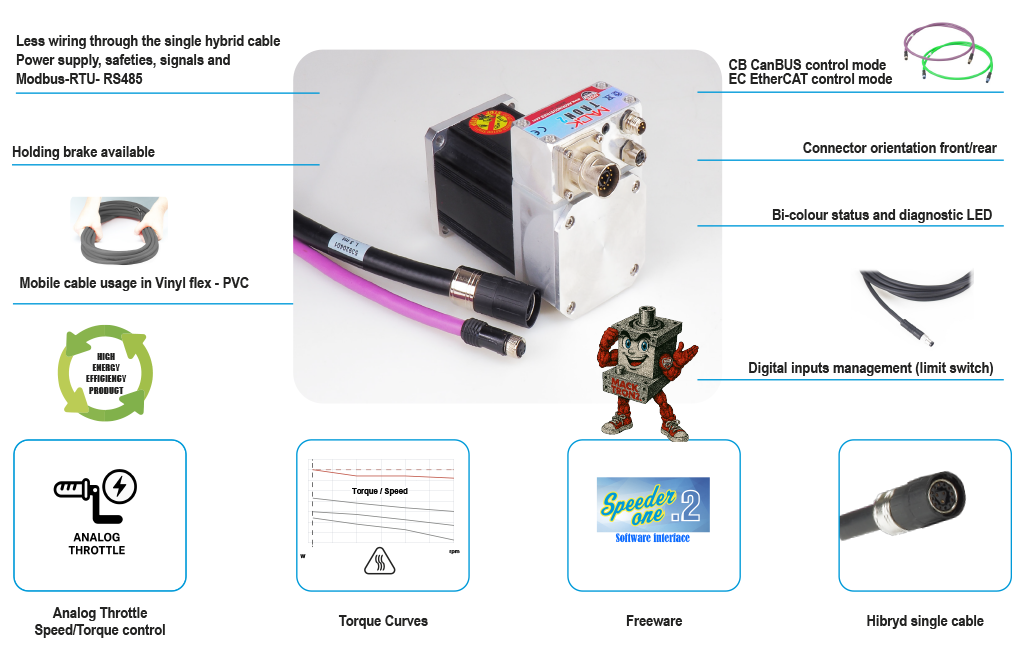

FEATURES

  • 8 Poles
  • B.E.M.F and waveform current
  • Very low torque fluctuation at low speeds
  • Serial Mack encoder, absolute single-turn or multi-turn
  • Automatic management of the electromagnetic holding brake
  • Bi-colour status and diagnostic LED
  • SpeederOne.2 software interface
  • RS485 for configuration, diagnostic and positioning
  • IP class protection IP54 and IP65
  • STO Safe Torque Off
  • SBC Safe Brake control
  • 3 digital inputs
  • Limit switches directly managed by MackTron2
  • Performances declared in the worst conditions: torque
    curves measured with motor thermally insulated (in air)
    at 40°C ambient temperature
