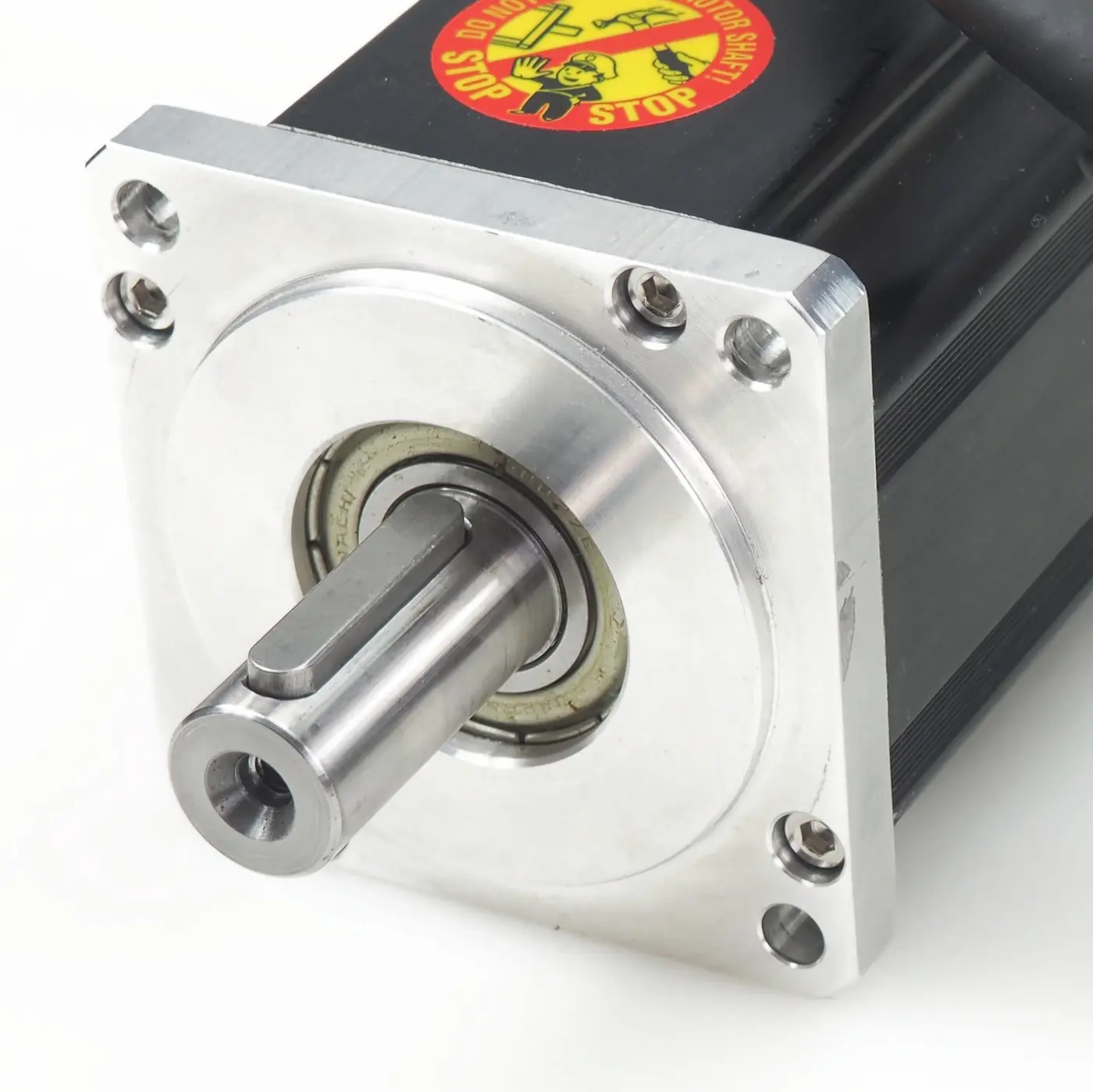

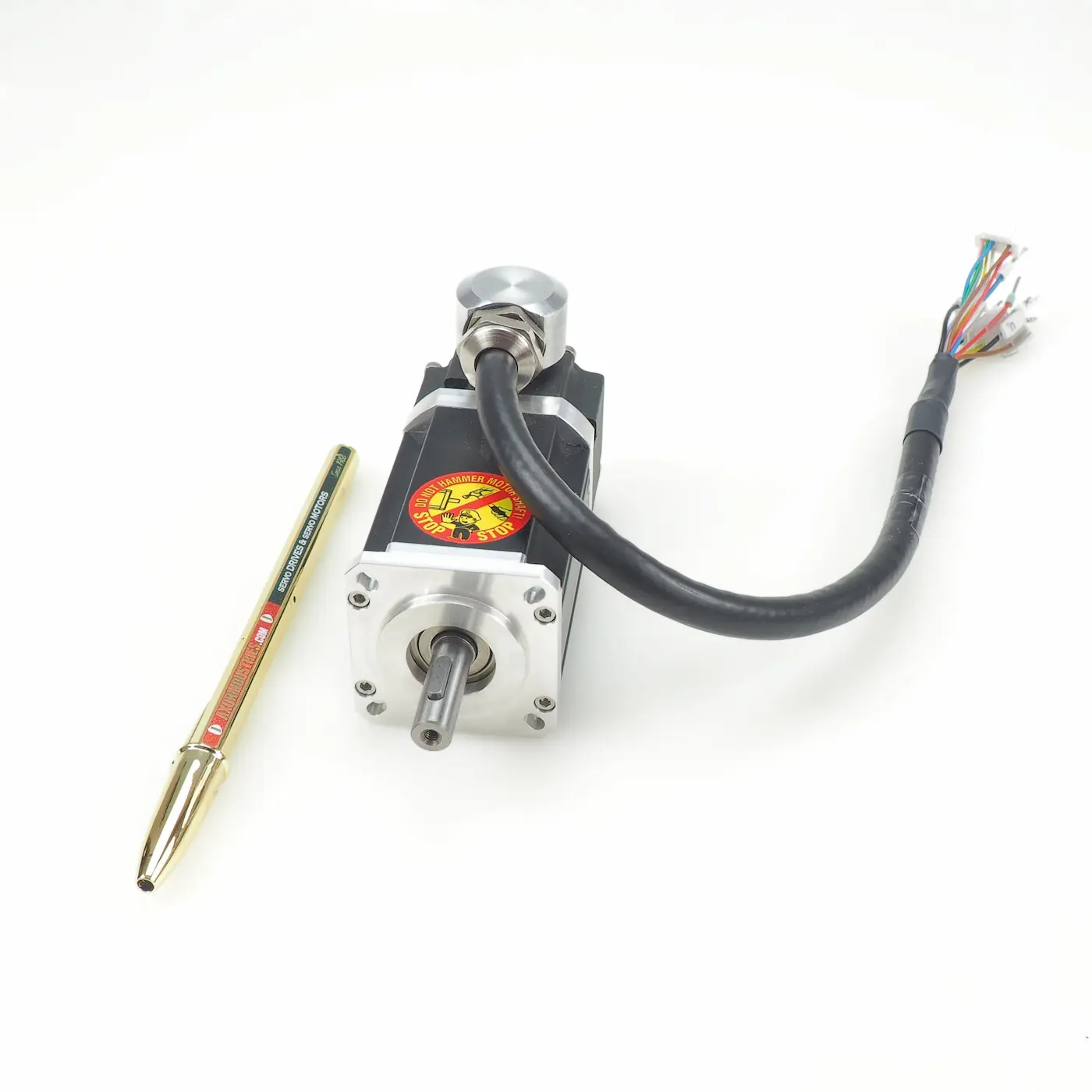

Mack Basic Motor (MKBM)

Brushless Servo Motor

A very robust, high performance, low noise motor for DC voltage supplies. Engineered & designed to meet axis control applications up to 1.3Nm. Compact dimensions and long-term reliability.

24-48
VDC
0.15-1.3
Nm
50-400
W

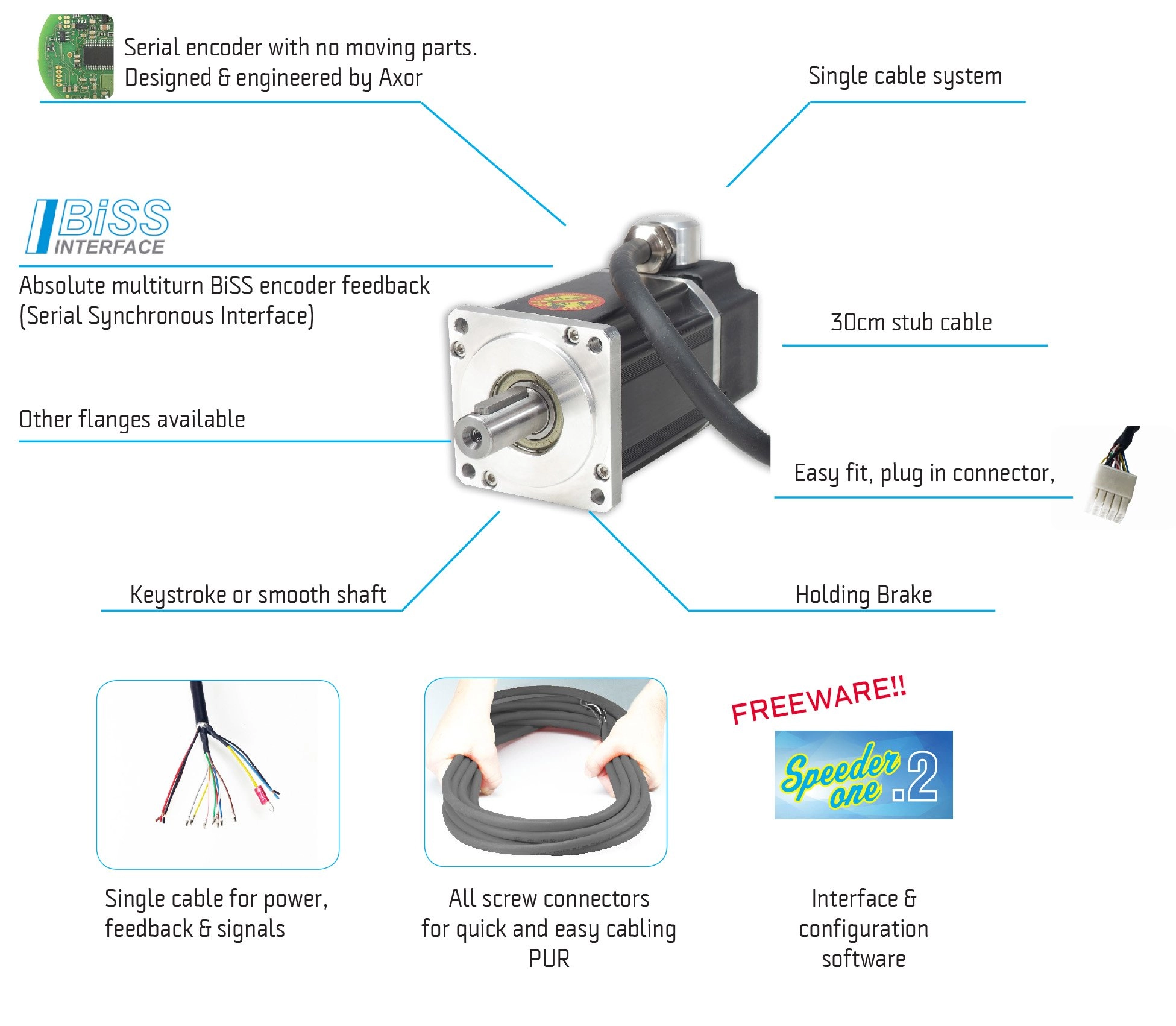

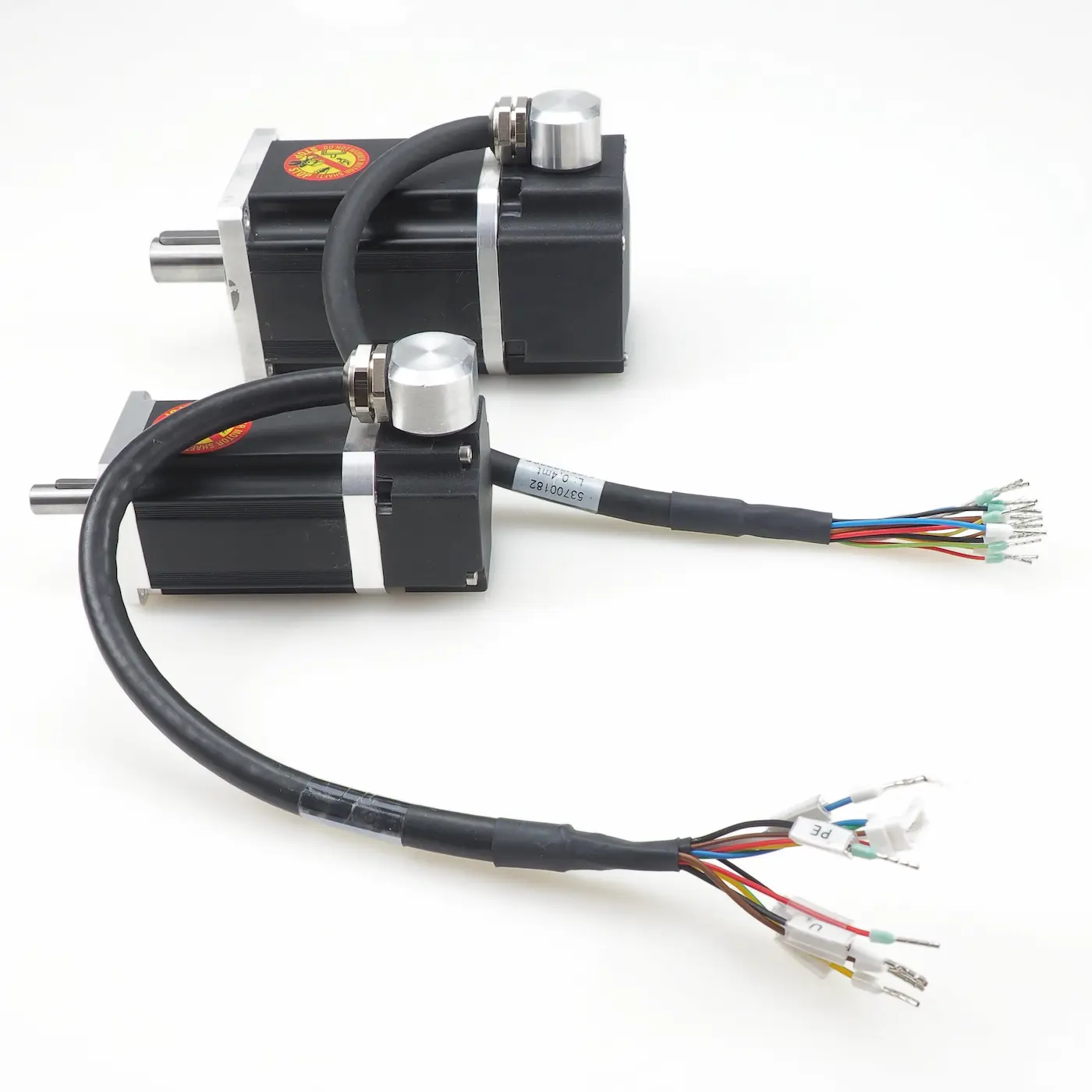

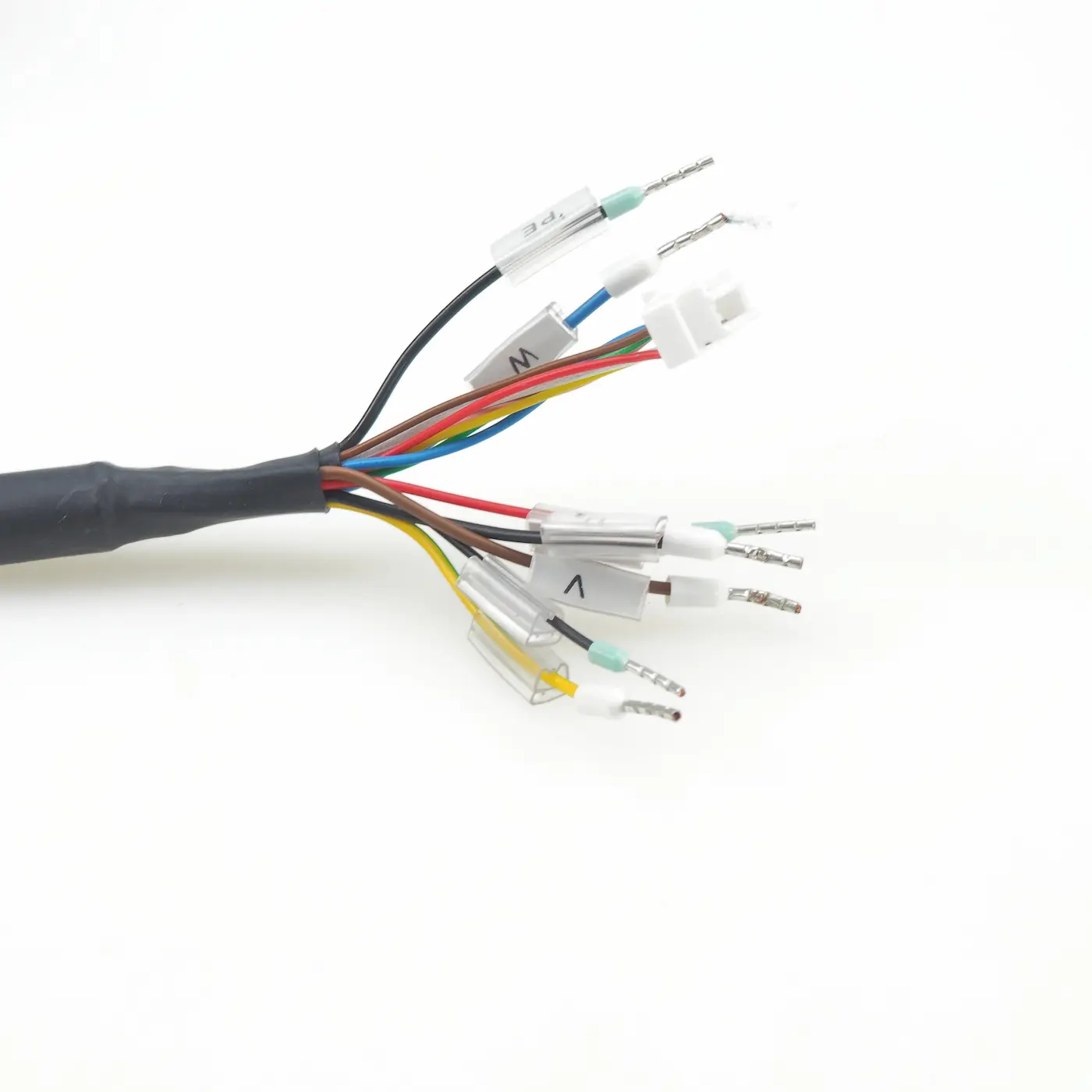

SINGLE HYBRID CABLE

  • Power, feedback and signals in one cable
  • Mobile chain track usage, flame / oil resistant
  • External sheath in PUR polyurethane
  • 5 million bend cycles
  • Minimum bending radius: 7 x Ø mm
  • Forward & reverse mounted connector
sarohs 2cedesinadin vde

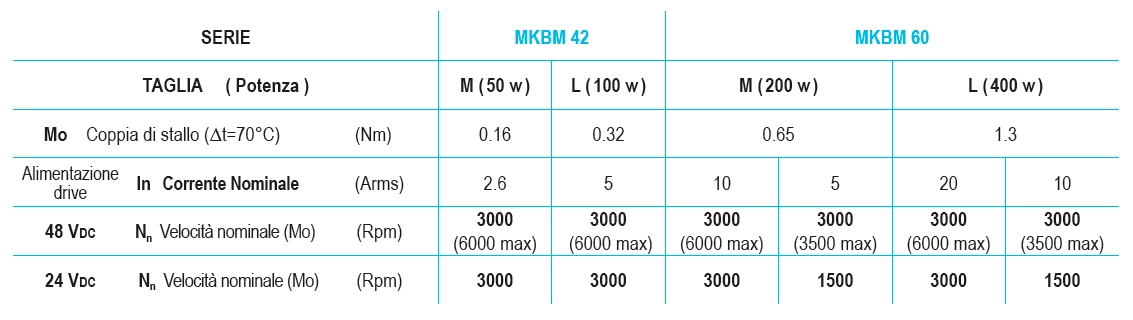

MODELS

STANDARD FEATURES

  • 8 Pole, no cogging
  • B.E.M.F. sine wave
  • Medium rotor inertia
  • Very low torque fluctuation at minimum speed
  • Single-turn or multi-turn absolute Mack® serial encoder
  • Holding brake
  • Protection rating IP54 & IP65
  • 30cm stub cable for easy connection
  • Special flanges and shafts
