Mack Tron2 B42 (MKT2B42)

Home / Products / Mack Tron2 B42 (MKT2B42)

Brushless servo-motor with integrated drive

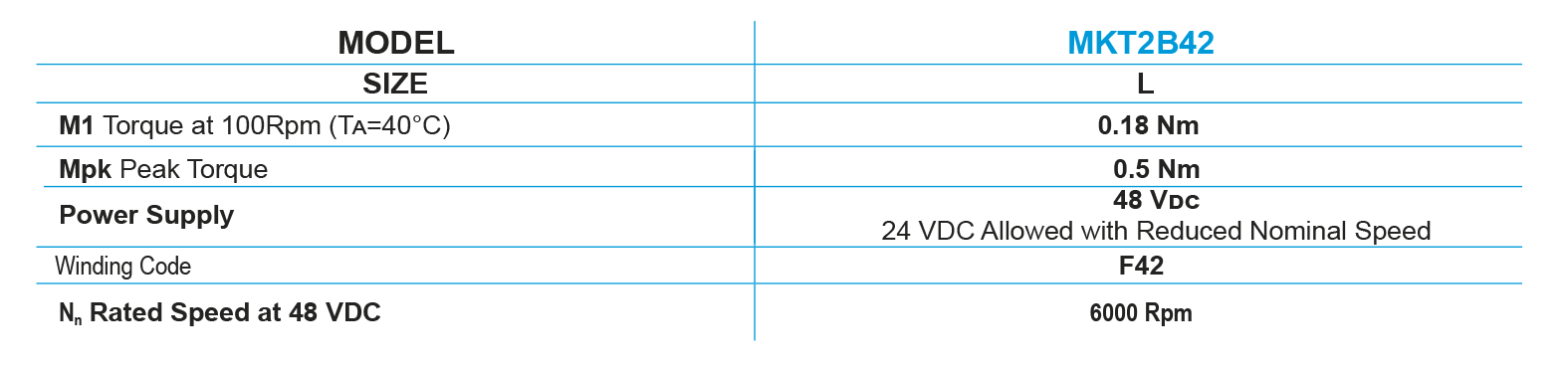

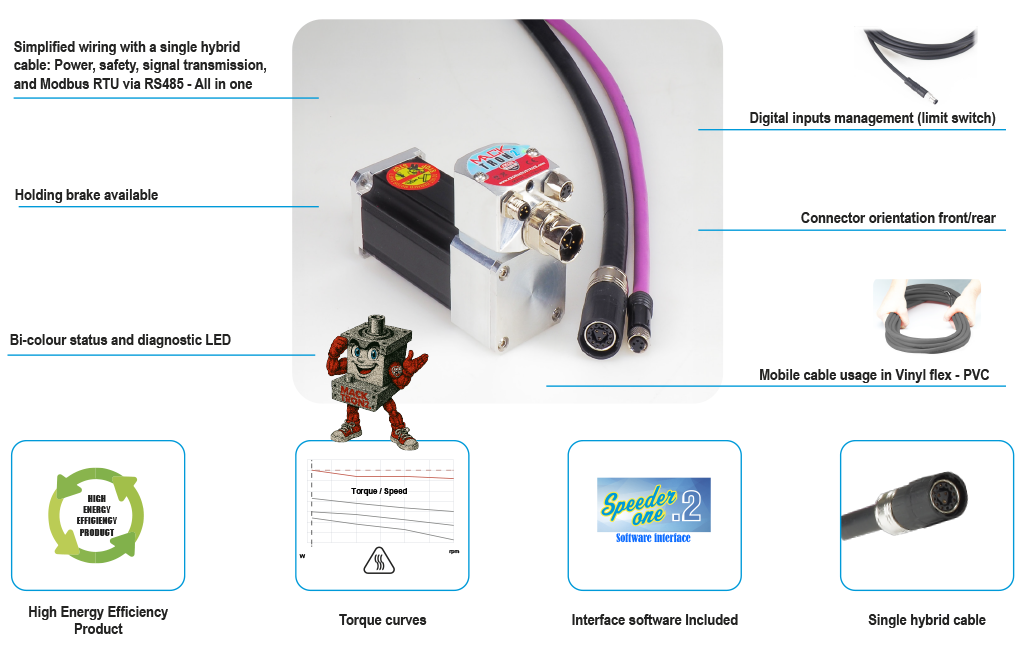

MackTron2B42 is a servo motor with an integrated drive, powered by 48V DC, featuring a nominal torque M1 of 0.18 Nm and a peak torque of 0.5 Nm. It stands out for its simple and fast wiring, as well as for its high performance packed into an extremely compact size. MackTron2B42 is the ideal solution for decentralized architecture applications, significantly reducing the footprint inside the electrical cabinet or even allowing its complete elimination.

0.18-0.5

Features

8 Poles
Sinusoidal B.E.M.F. and current
Feedback via EI1 single-turn absolute encoder (14-bit resolution)
CB control mode via opto-isolated CAN BUS
Device status indication via bi-color LED
Speeder-One.2® software interface
Modbus RTU RS485 protocol for configuration, monitoring, and positioning
Ambient temperature¹: – Operating at nominal data: 0°C to +40°C (no derating) – Storage: –20°C to +55°C (1 Free from condensation)
Ambient humidity¹: Operating and storage: max 85% RH (1 Free from condensation)
Altitude (above sea level): Operating and storage: up to 1000 m
Protection rating: IP54
Maximum storage time: 1 year² (2 After one year storage the electrolytic capacitors must be reformed. Contact Axor for details.)
