Integrated ServoMotors

Motor and drive coexist within a single compact body, designed to minimize wiring, footprint, and installation time.

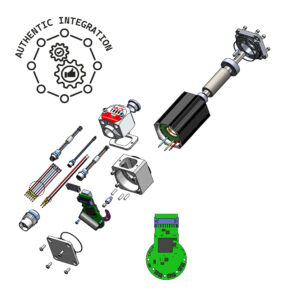

The integrated architecture eliminates many of the failure points typical of systems with external drives, increasing the overall reliability of the machine and simplifying the design process.

• High‑density magnetic structure for greater torque in a reduced footprint. • Next‑generation power electronics for smooth, precise, and repeatable motion.
• Advanced thermal optimization, ideal for continuous operation and dynamic applications.
Typical Applications: packaging, robotics, handling and compact machinery, biomedical and diagnostic equipment where precision and low noise are essential, high‑precision rotary systems, medical devices, and miniaturized equipment. High‑dynamic automatic machines. AGVs, AMRs, and battery‑powered systems.

Maggiori informazioni su Servomotori Integrati e Separati.

Why Choose AXOR Ind.

AXOR IND. integrated servomotors eliminate the need for external drives, significantly reducing the space required in electrical cabinets and minimizing installation time. They are ideal for applications where space savings and simplified wiring are key requirements.

Thanks to extensive industry experience, the AXOR Ind. team supports customers and partners in the design of both standard and customized solutions, meeting the needs of OEMs across all sectors.

General Specifications

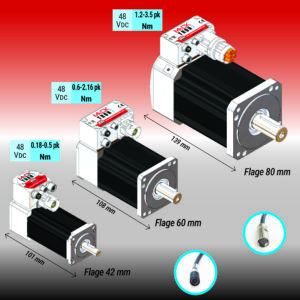

Continuous torque: 0.18 to 1.2 Nm
Peak torque: 0.5 to 3.5 Nm
Body length: 101 to 139 mm
Flanges: 42 / 60 / 80 mm

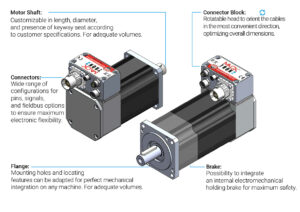

Customizable: on request and for adequate volumes
Power supply: 24/48 VDC
Rotor: 8‑pole with permanent magnets
Control: high‑performance deterministic control
Advanced Functions: trajectory generation, advanced control modes Diagnostics: integrated real‑time diagnostics
Communication / Industrial Interfaces: CANopen, EtherCAT (CODESYS), Modbus‑RTU, RS485
Feedback: multi‑turn absolute encoder
Robustness: compact, rigid body for dynamic applications
Immunity: high immunity to electrical noise
Protection: IP54/65
Safety: integrated thermal protector
Maintenance: reduced thanks to the integrated design
Interface: SpeederOne.2 software
