MACK TRON2
Integrated ServomotorMACK Servomotor

Do you want to speak to a specialist for your Integrated Servomotor application?
Fill out the form now, one of our technicians will give you all the information

    Your email is protected Privacy policy. The information request is free and non-binding.

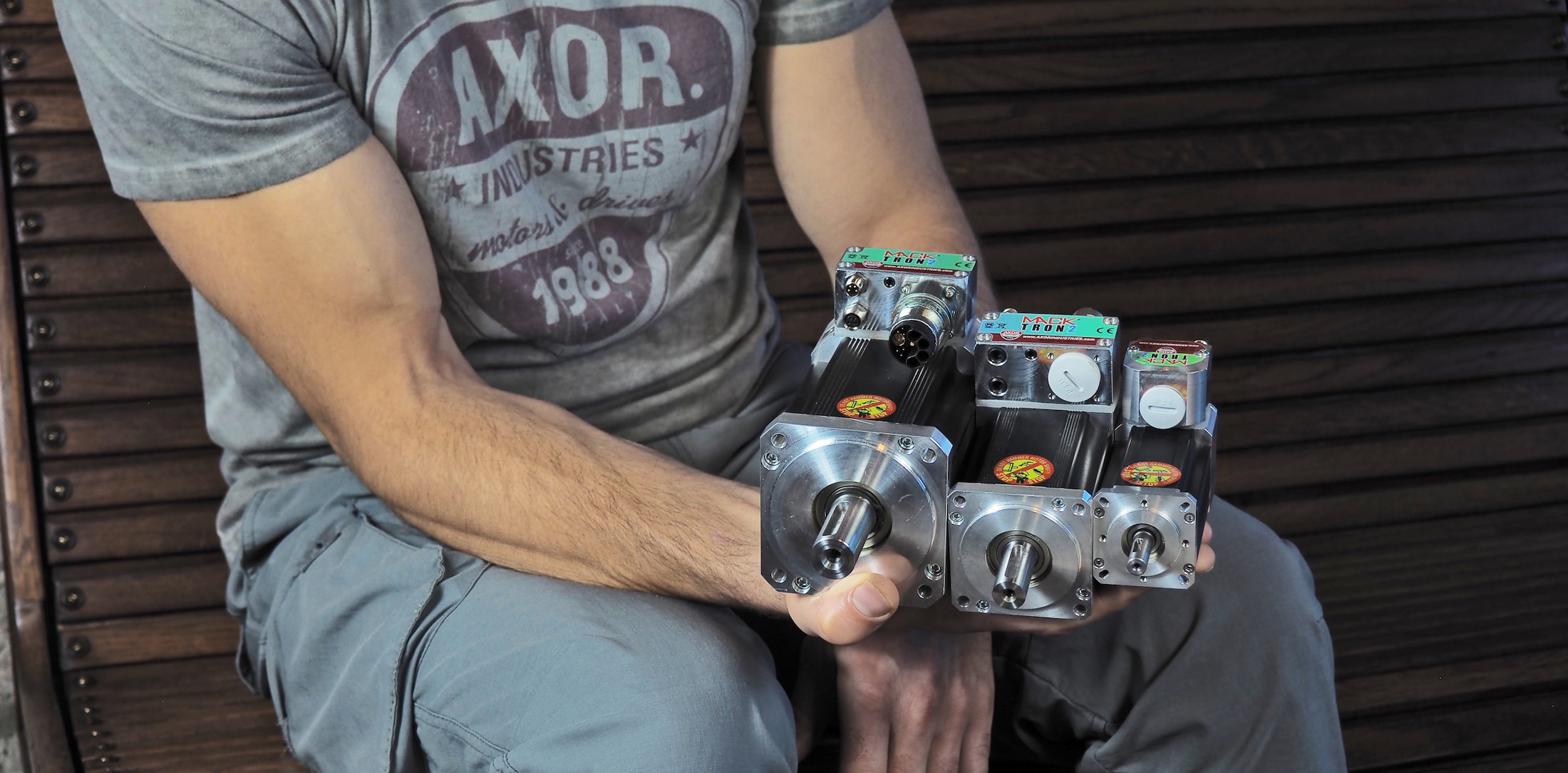

    Mack Tron2 is a brushless servomotor with integrated drive: a single piece of equipment includes both the motor and its control unit.

    Monocable configurations are available with power supply, commands and safety devices.
    A compact and easy to install solution, ideal in narrow but dense architectures such as automatic machines in the medical and format change sectors, in AGVs, self-driving vehicles, self-propelled vehicles.
    24/48Vdc power supply
    Torques from 0.5 to 3.5 Nm
    Continuous currents higher than the previous series
    Analog throttle function
    Increased thermal efficiency compared to the previous series
    Back up voltage included in the power voltage
    Command modes: CANopen, EtherCAT, Modbus-RTU, RS 485
    Automatic management of the electromagnetic parking brake
    STO safe Torque off
    SBC Safe Brake control
    Torque curves for S1 and S3 cycles.

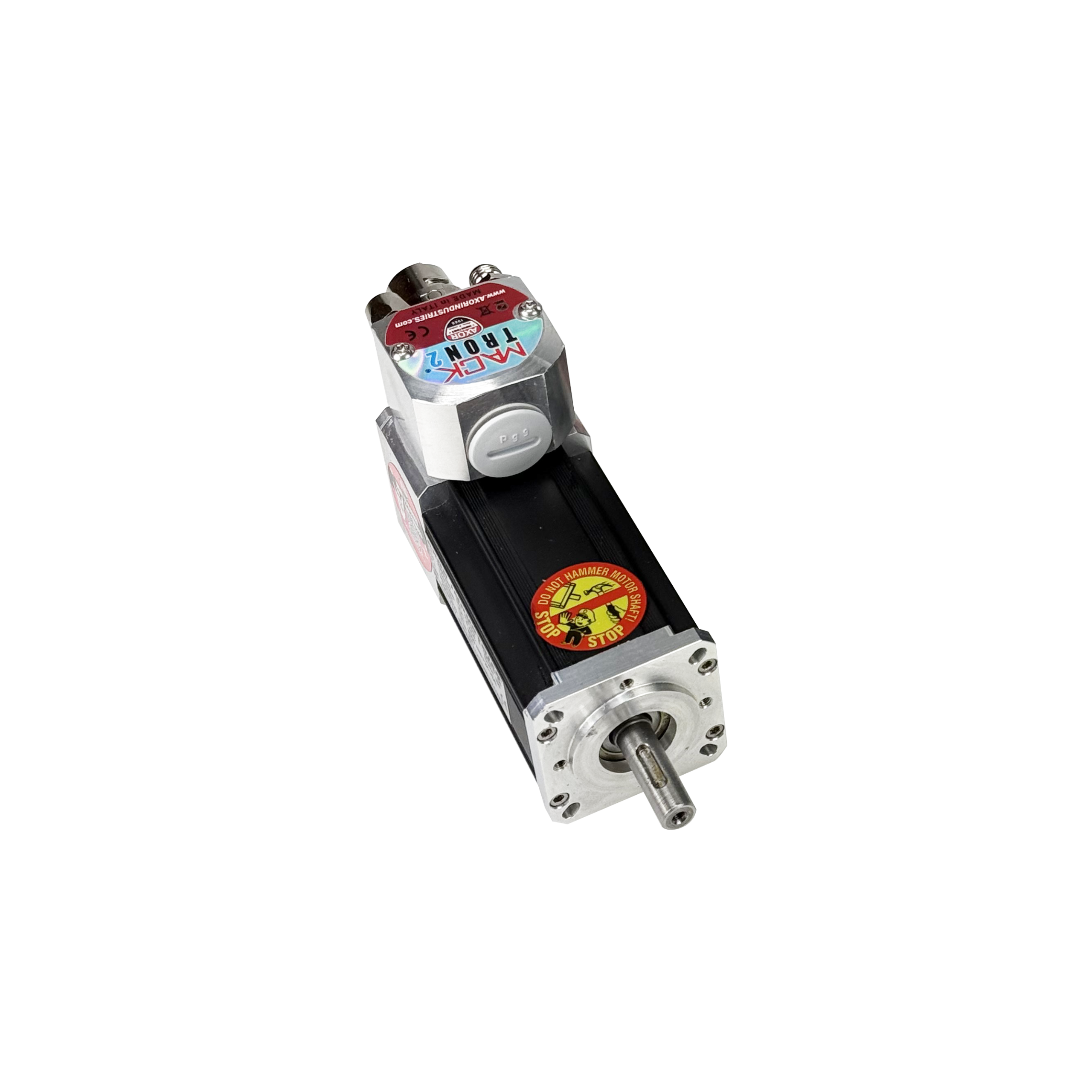

    MACK TRON2

    B42

    48
    Vdc
    0.18-0.5 pk
    Nm
    Length 101 mm
    Shaft diameter 8mm x 25mm long
    M1 torque at 100Rpm: 0.18Nm
    MKT peak torque: 0.5Nm
    M15 power connector
    Axor Ind. cable in combination with M15 connector. Current up to 15A.
    Download brochure

    Download the brochure
    MACK TRON2 B42

    Fill out the form below to receive our brochure

      La tua mail è protetta: Privacy policy. La richiesta è gratuita e non impegnativa.

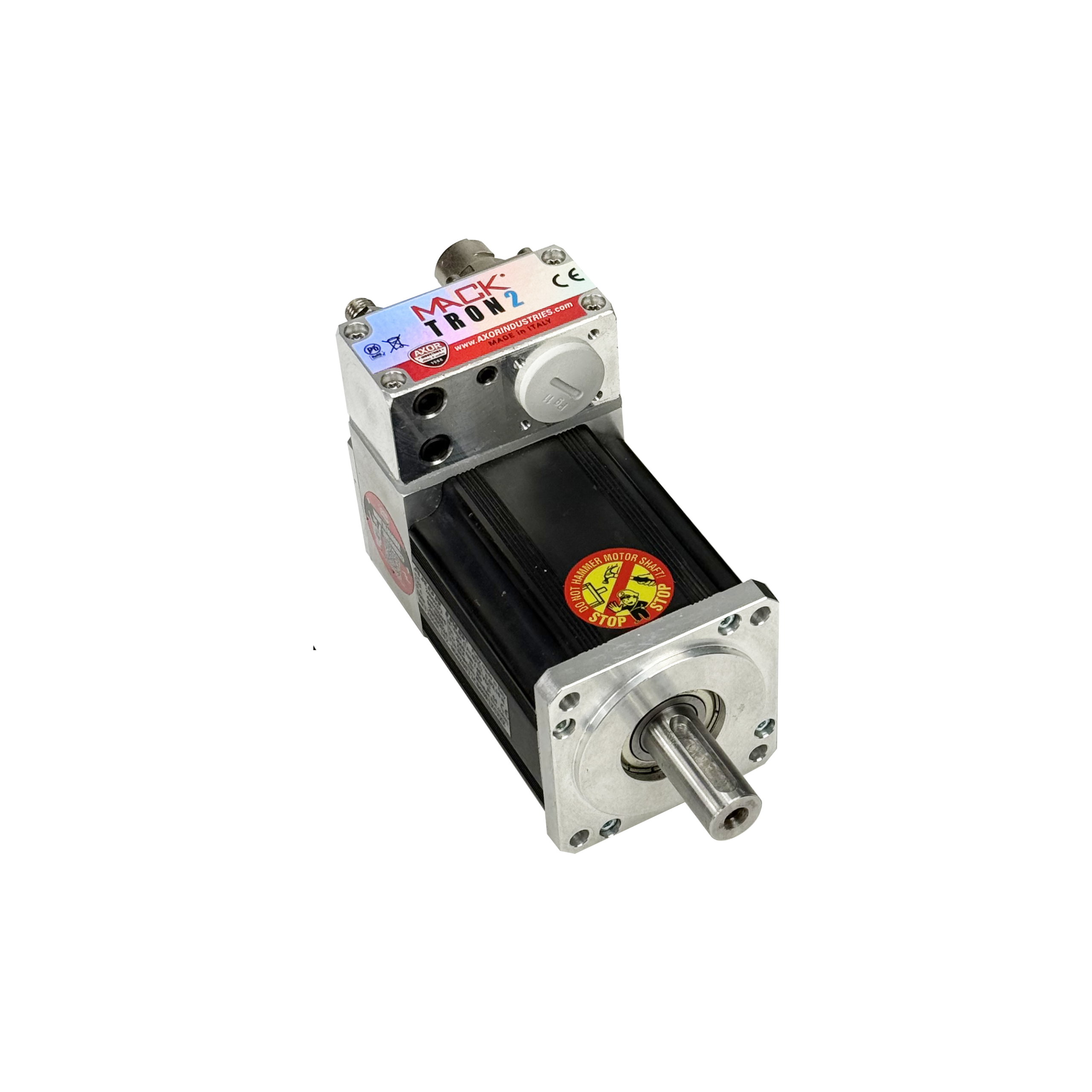

      MACK TRON2

      B60

      48
      Vdc
      0.6-2.16 pk
      Nm
      Length 108 mm (141mm with the brake)
      Shaft diameter 14mm x 30mm long
      M1 torque at 100Rpm: 0.6Nm
      MKT peak torque: 2.16Nm
      M15 power connector
      Axor Ind. cable in combination with M15 connector. Current up to 15A.
      Download brochure

      Download the brochure
      MACK TRON2 B60

      Fill out the form below to receive our brochure

        La tua mail è protetta: Privacy policy. La richiesta è gratuita e non impegnativa.

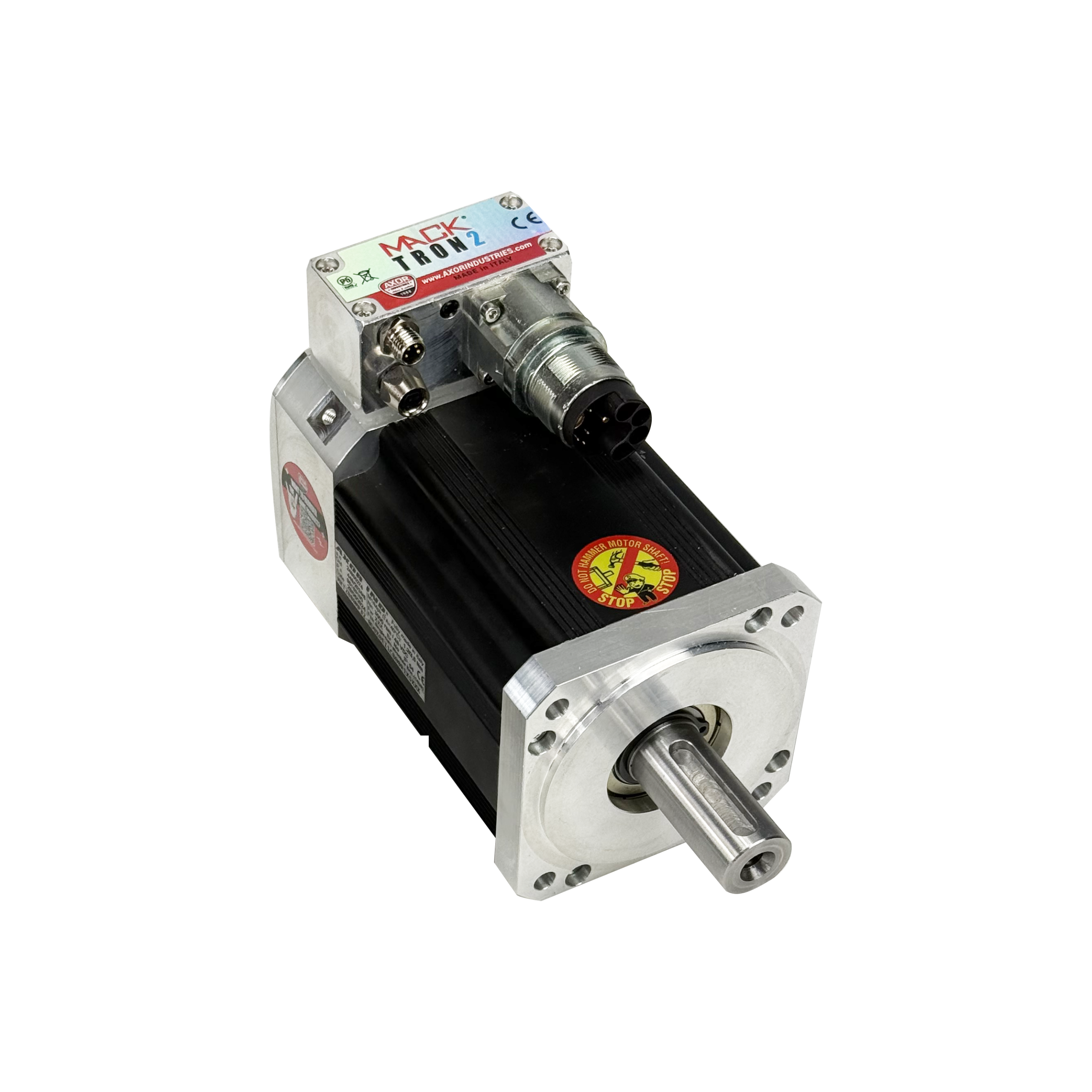

        MACK TRON2

        B80

        48
        Vdc
        1.2-3.5 pk
        Nm
        Length 139 mm (172mm with the brake)
        Shaft diameter 19mm x 40mm long
        M1 torque at 100Rpm: 1.2Nm
        MKT” peak torque: 3.5 Nm
        M23 power connector
        Axor Ind. cable in combination with M23 connector. Current up to 30A
        Download brochure

        Download the brochure
        MACK TRON2 B80

        Fill out the form below to receive our brochure

          La tua mail è protetta: Privacy policy. La richiesta è gratuita e non impegnativa.

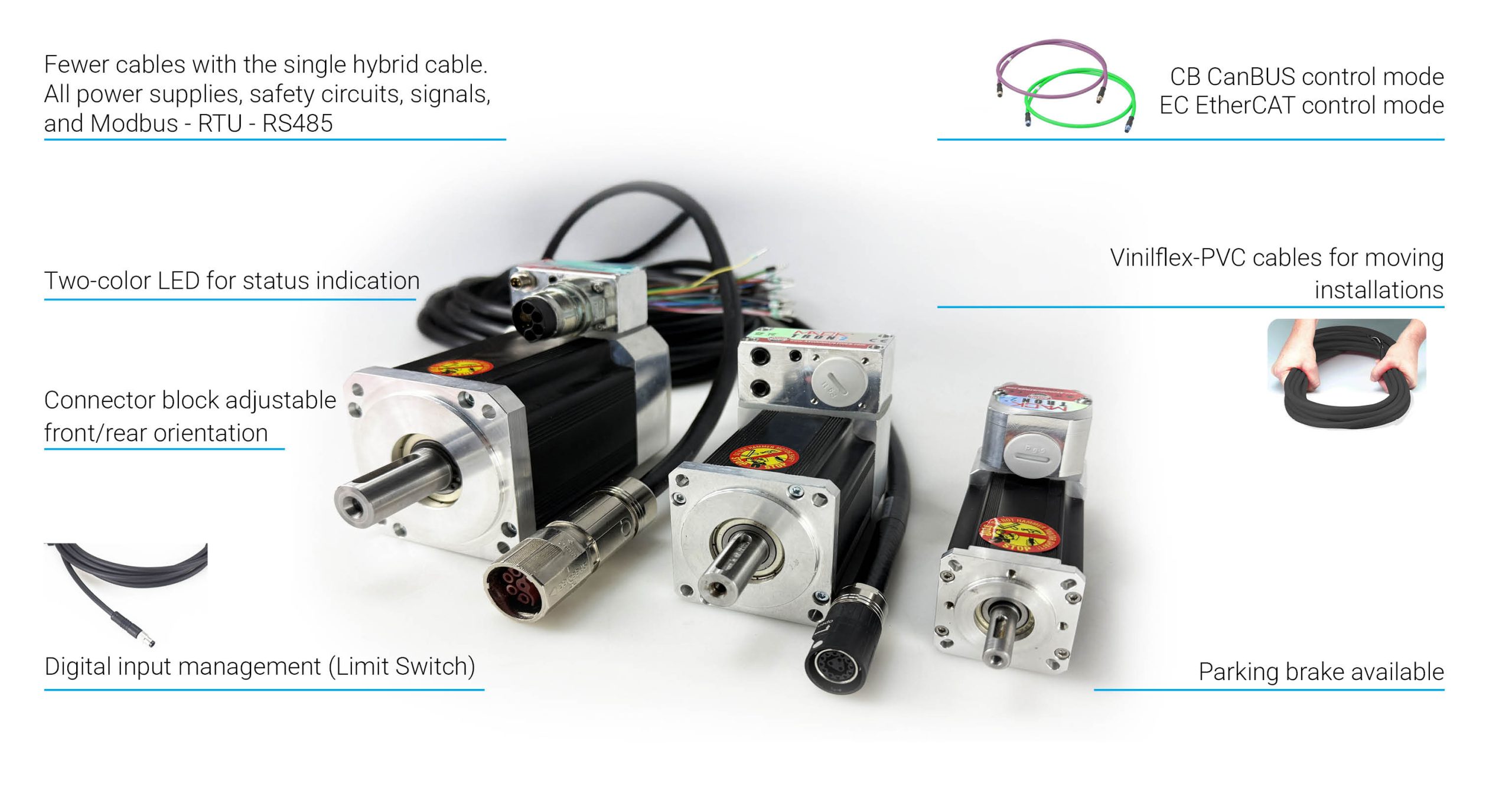

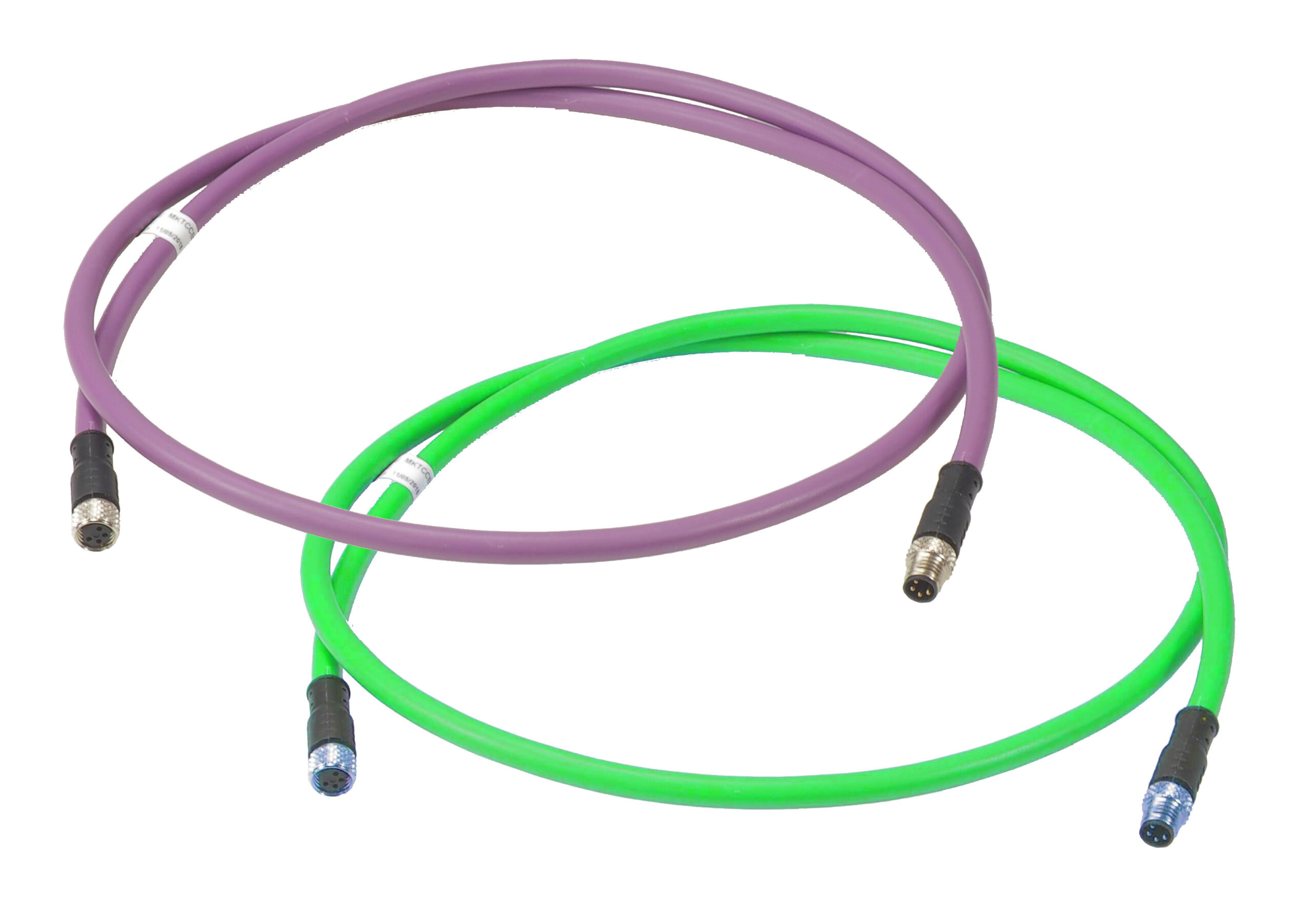

          CB CanBUS control mode

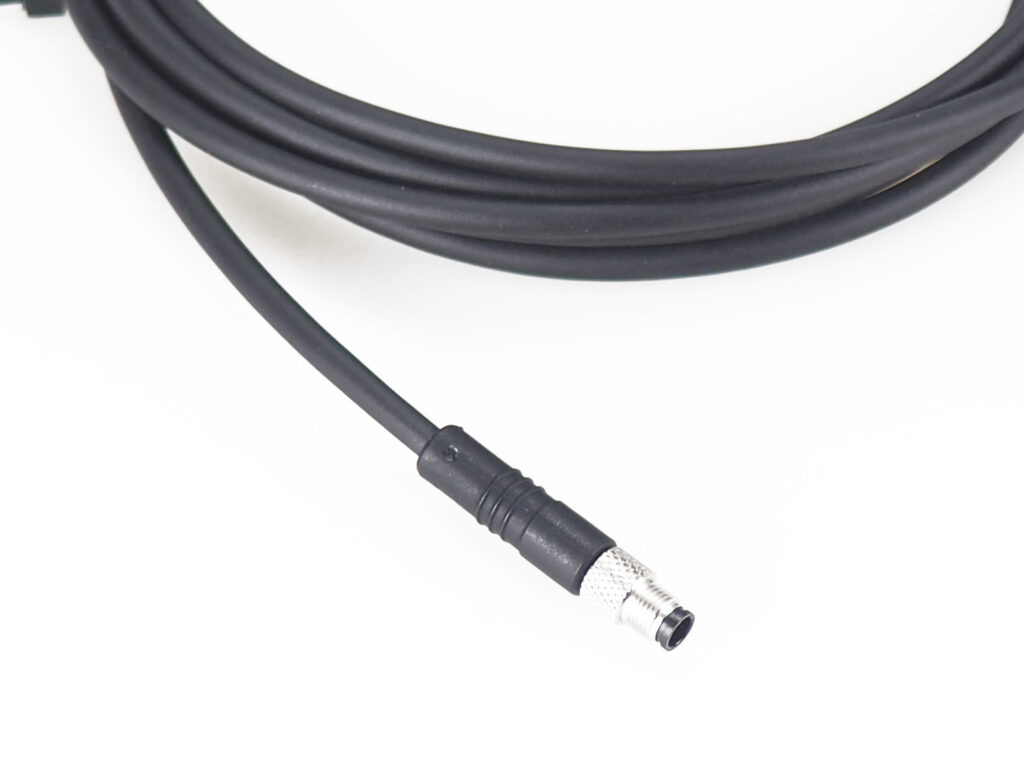

          Gestione Ingressi digitali (Limit Switch) in prossimità del MackTron2

          Cablaggi minimi con il cavo ibrido singolo. Tutte le alimentazioni-sicurezze-segnali
          e Modbus – RTU – RS485

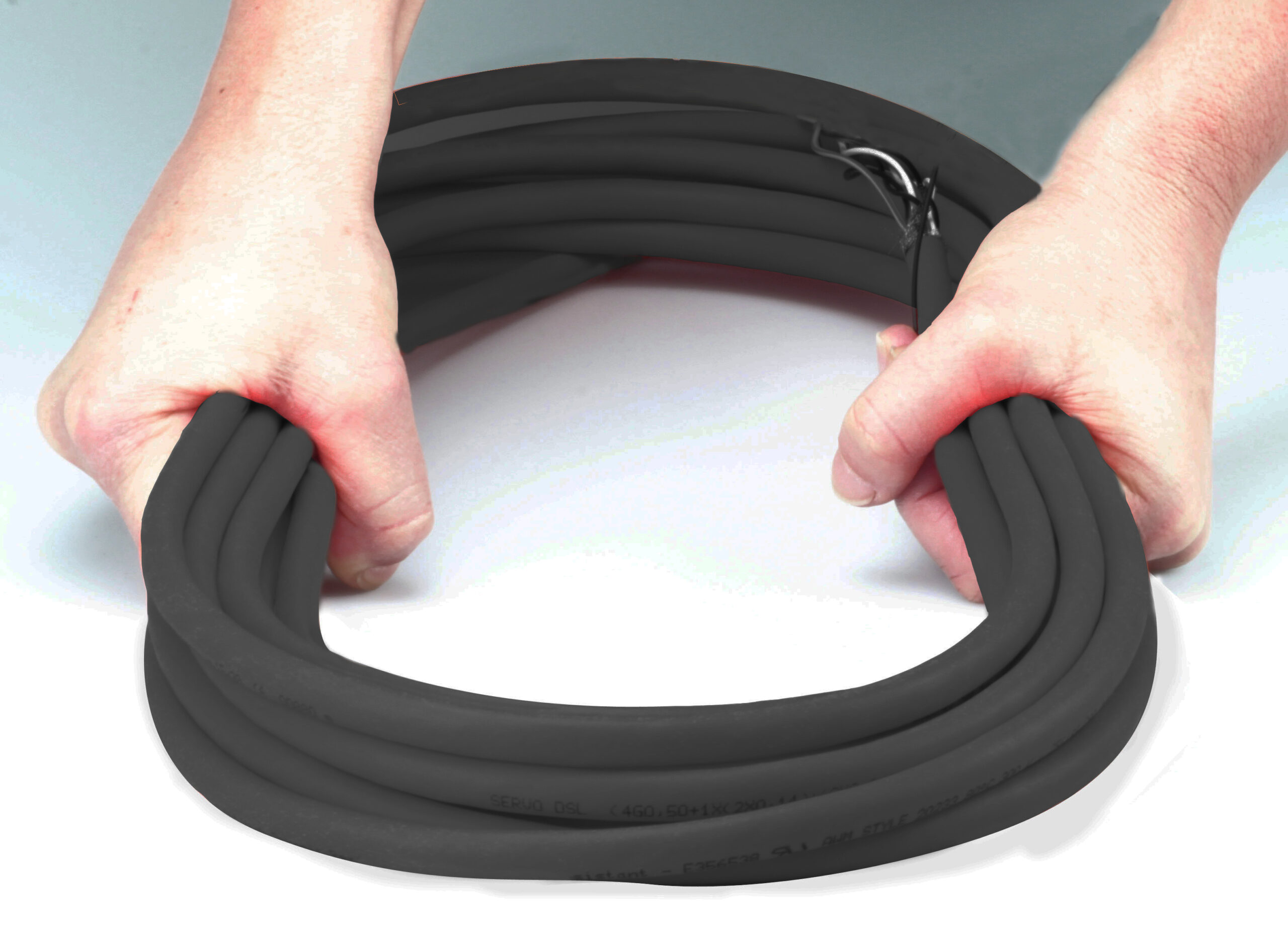

          Cavi posa mobile in vinilflex-pvc

          Freno di stazionamento disponibile

          Unità connettori orientabile fronte/retro

          LED bicolore per segnali di stato

          EC EtherCAT control mode

          SELF-PROPELLED BATTERY

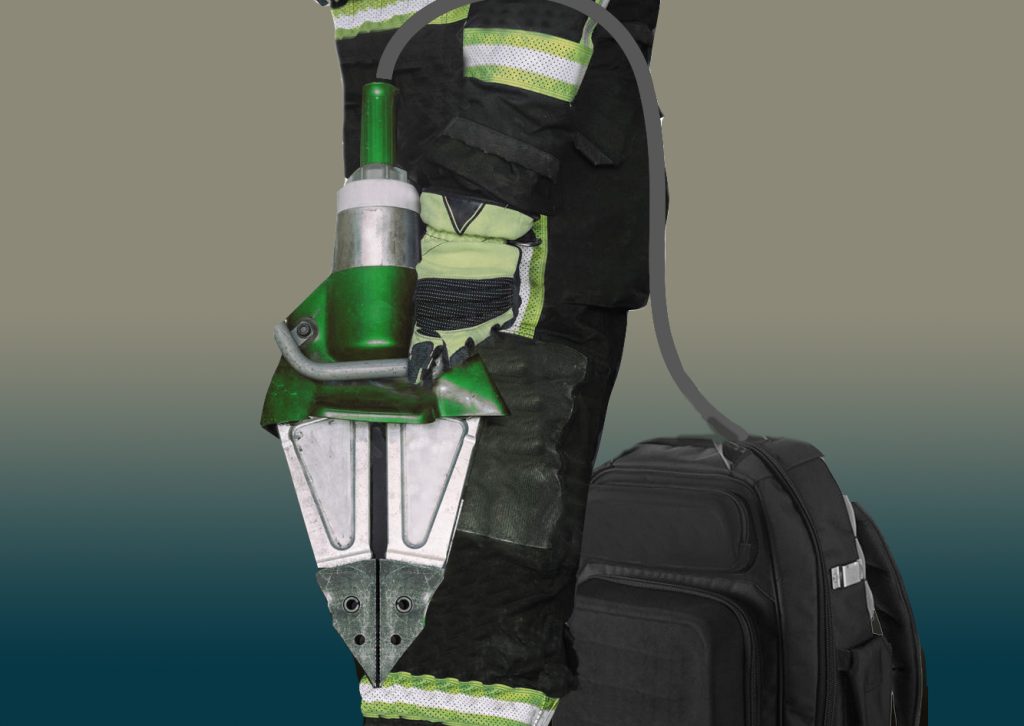

          BATTERY TOOLS
          AUTOMATIC GUIDED VEHICLES
          AGV

          APPLICATIONS with INTEGRATED SERVO MOTORS

          The MackTron2 architecture is perfectly suited to both motion and automotive applications, both with classic automation and battery-powered vehicle applications, 3D printers, packaging.
          Great smoothness of movement and torque delivery at low revolutions, excellent dynamics and integrated safety and communication functions for a high tech robotics market.
